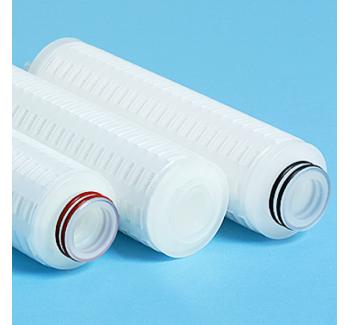

PP folding filter element is folded by microfiber PP filter membrane and pure PP non-woven support layer, which effectively expands the use area of the filter element. The unique process gives high pollution and high throughput characteristics
PP folding filter element is folded by microfiber PP filter membrane and pure PP non-woven support layer, which effectively expands the use area of the filter element. The unique process gives high pollution and high throughput characteristics. The whole filter element is made of PP, using hot melt welding, no fiber shedding, not containing any adhesive. It is safe to use and widely used in various fields. All filters are manufactured in a clean room environment.
Product Features
The removal rateing covers 0.1~50um, which can meet different filtration accuracy requirements
Chemical compatibility is extensive and can be used to filter most acids, bases and solvents
The full range of filter element size and interface mode, suitable for the vast majority of standard filter cases
Compliance with the FDA food contact use provisions
Typical Application
Food and beverage filtration
Chemical filtration
RO pre-filtering
Process-based water filtration
Medical water filtration
Material of Construction
Filter Medium : PP
Support layers: PP
Core / Cage / end Caps/ Adaptors : PP
Gasket / O- rings: Silicone / EPDM/ Viton
Removal Ratings: 0.1um,0.22um,0.45um,1.0um,3.0um,5.0um, 10um
Product Property
Maximum operating temperature: 80℃
Maximum ΔP : 4.0bar@20℃,or 2.4bar@80℃
Autocalve/Steaming :125℃/30min
Product Dimensions(Nominal)
Diameter: OD: 69mm (2.68 ") Length: 5", 10 ", 20", 30 ", 40"
Quality Assurance
All the filter elements are manufactured in the ISO CLASS 7 clean room
Strictly implement the ISO9001:2005 quality management system and the ISO13485 medical device quality management system
A 100% integrity test
