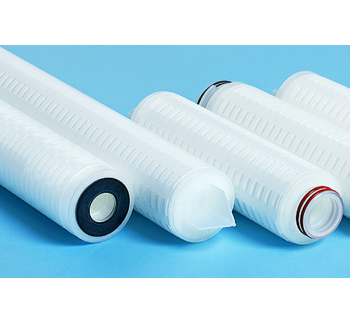

PES folding filter element is made of low precipitation, asymmetric hydrophilic PES filter film, with very low extractability and no fiber release. Filter element, with good chemical compatibility, is suitable for most of the pharmaceutical industry terminal sterilization and filtration.
PES folding filter element is made of low precipitation, asymmetric hydrophilic PES filter film, with very low extractability and no fiber release. Filter element, with good chemical compatibility, is suitable for most of the pharmaceutical industry terminal sterilization and filtration.
Product Features
High DHC, long lifetime
Highly durable PES Membrane
Hydrophilic and pure membrane
Good chemical compatibility (PH 1 ~ 14)
Low protein adsorption
Typical application
LVP and SVP
Biological products, sterilization and filtration
Antibiotic aqueous liquid sterilization and filtration
Cleaner and disinfectant, sterilizing and filtration
Material of Construction
Membrane:PES
Support layers: PP
Core / Cage / end Caps/ Adaptors : PP
Gasket / O- rings: Silicone / EPDM/ Viton
Removal Ratings: 0.22um,0.45um,1.2um,3.0um
Product Property
Maximum operating temperature: 80℃
Maximum ΔP : 4.0bar@20℃, or 2.4bar@80℃
Autocalve/Steaming :125℃/30min
Product Dimensions(Nominal)
Diameter:OD: 68mm (2.68 ") Length: 5", 10 ", 20", 30 ", 40"
Quality Assurance
All the filter elements are manufactured in the ISO CLASS 7 clean room
Strictly implement the ISO9001:2005 quality management system and the ISO13485 medical device quality management system
A 100% integrity test
