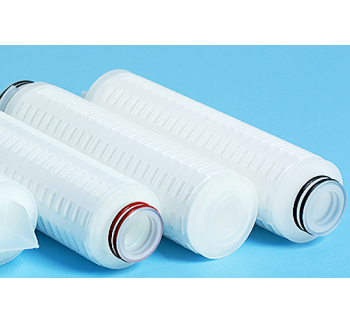

The filter element made of hydrophilic PVDF filter membrane with low protein adsorption is suitable for the filtration of culture media, biological agents and vaccines.
Product Features
Protein adsorption rate is extremely low
High-throughput, long-life span
Extensive chemical compatibility (PH 1 ~ 14), used for filtration in various pharmaceutical processes
Typical Application
Cells were cultured and filtered
Protein filtration
Blood products filtration
Food and beverage filtration
Material of Construction
Membrane :PVDF
Support layers: PP
Core / Cage / end Caps/ Adaptors : PP
Gasket / O- rings: Silicone / EPDM/ Viton
Removal Ratings: 0.22um,0.45um
Product Property
Maximum operating temperature: 80℃
Maximum ΔP : 4.0bar@20℃,or 2.4bar@80℃
Autocalve/Steaming :125℃/30min
Product dimensions(Nominal)
Diameter: OD:68mm (2.68 ") Length: 5 ", 10", 20 ", 30", 40"
Quality Assurance
All the filter elements are manufactured in the ISO CLASS 7 clean room
Strictly implement the ISO9001:2005 quality management system and the ISO13485 medical device quality management system
A 100% integrity test
