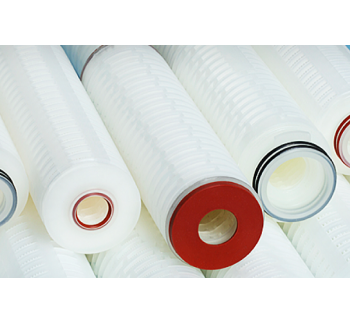

Made of ultra-fine glass fiber material, low pressure drop, high filtration efficiency, filtration efficiency of more than 98%; It has a large filtration area and can achieve high flow rate and high nano-pollution volume, reduce the frequency of filter replacement, reduce the cost of use. It is suitable for a variety of industries.
Made of ultra-fine glass fiber material, low pressure drop, high filtration efficiency, filtration efficiency of more than 98%; It has a large filtration area and can achieve high flow rate and high nano-pollution volume, reduce the frequency of filter replacement, reduce the cost of use. It is suitable for a variety of industries.
Product Features
Low differential pressure, high flux
High DHC, high filtration efficiency
Chemical compatibility is extensive
Typical Application
Filtering of the pharmaceutical intermediates
Food and beverage filtration
Chemical filtration
Water treatment industry
Material of Construction
Membrane: GF
Support layers: PP
Core / Cage / end Caps/ Adaptors : PP
Gasket / O- rings: Silicone / EPDM/ Viton
Removal Ratings: 0.45um,1.0um,3.0um,5.0um
Product Property
Maximum operating temperature: 80℃
Maximum ΔP : 4.0bar@20℃,or 2.4bar@80℃
Autocalve/Steaming :125℃/30min
Product Dimensions(Nominal)
Diameter: OD: 68mm (2.68 ") Length: 5 ", 10", 20 ", 30", 40"
Quality Assurance
All the filter elements are manufactured in the ISO CLASS 7 clean room
Strictly implement the ISO9001:2005 quality management system and the ISO13485 medical device quality management system
A 100% integrity test
